Large-diameter pipe — cut to fit.
Pipe from 1″ to a 14″ chuck, Schedule 40 and 80, with nozzles, penetrations and weld-prep cut on the machine. Heavy pipe, fit-and-weld ready.

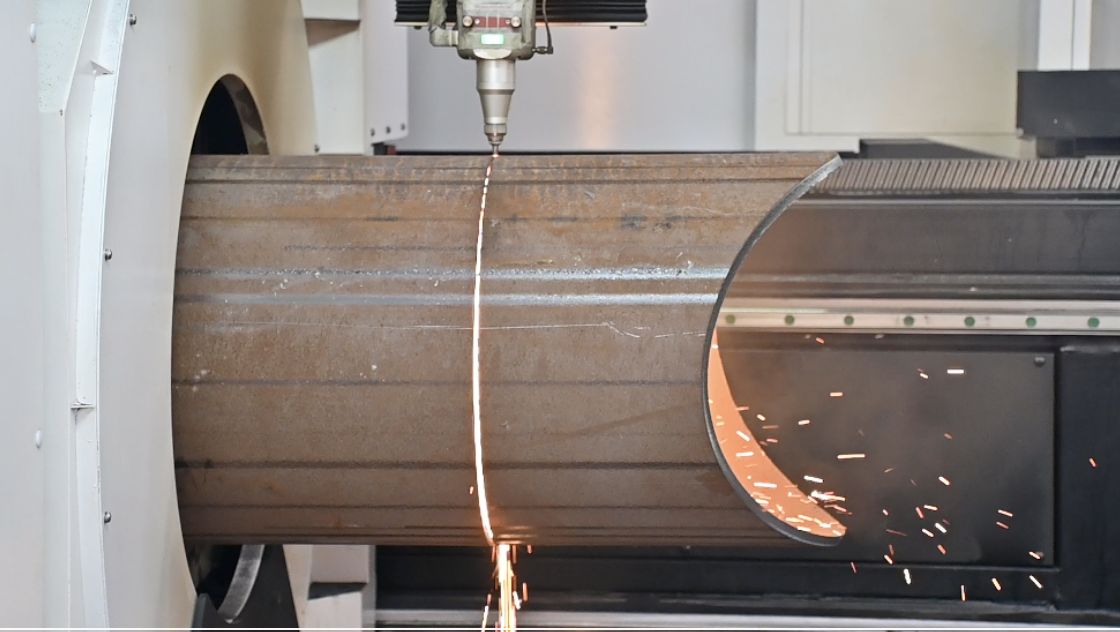

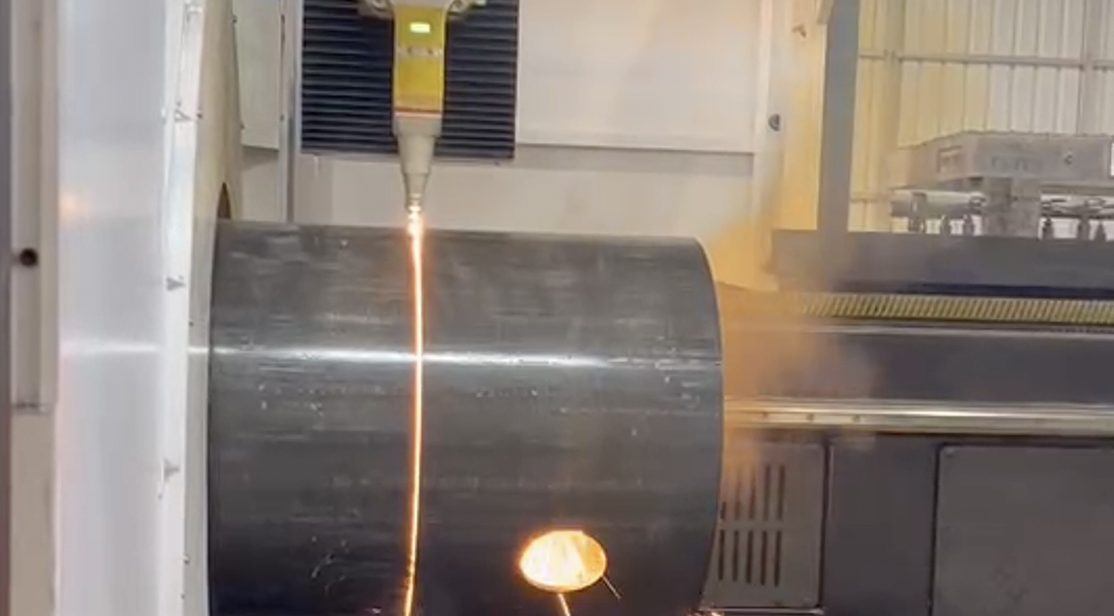

IMWX laser-cuts large-diameter pipe from 1 inch up to a 14-inch chuck capacity, in Schedule 40 and Schedule 80 wall. Nozzle openings, branch and penetration cuts, saddles, copes, holes and weld-prep are all cut on the machine, so heavy pipe arrives fit-and-weld ready instead of being hand-laid-out and torch-cut. Laser accuracy means pipe intersections and nozzle ports land on center and match their mating parts the first time. This capability feeds process piping, pipe racks, pressure-vessel nozzle work and any job where round stock has to be cut precisely rather than roughly.
What we fabricate
- Nozzle & penetration openingsTube
- Saddle & coped pipe endsTube
- Branch & tee connectionsTube
- Process-pipe spoolsTube
- Weld-prep pipe endsTube

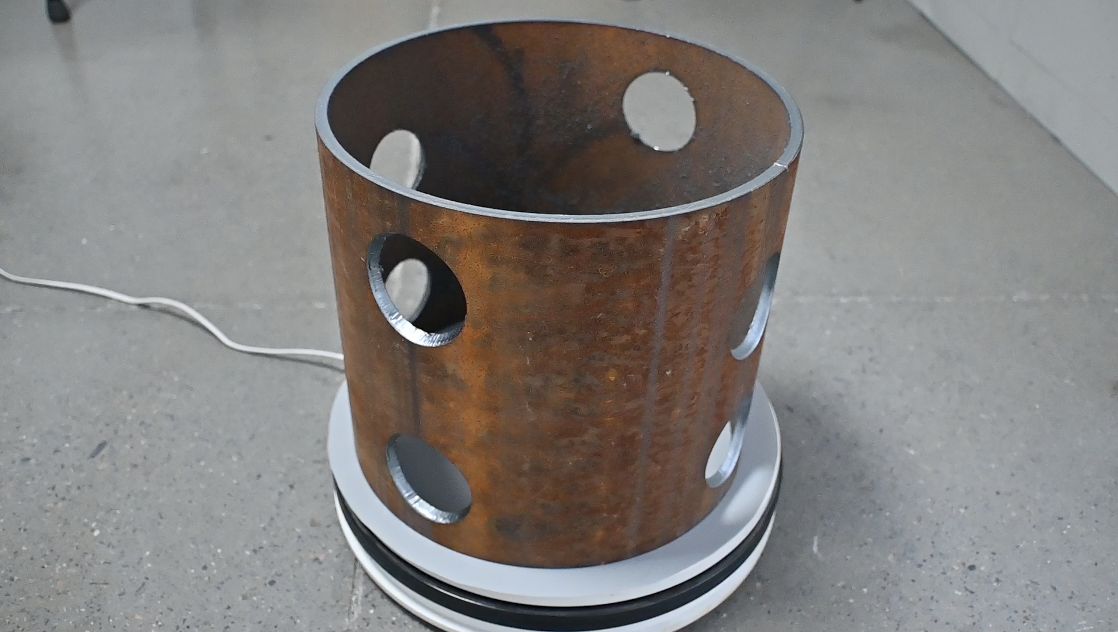

- Large-bore holes & slotsTube

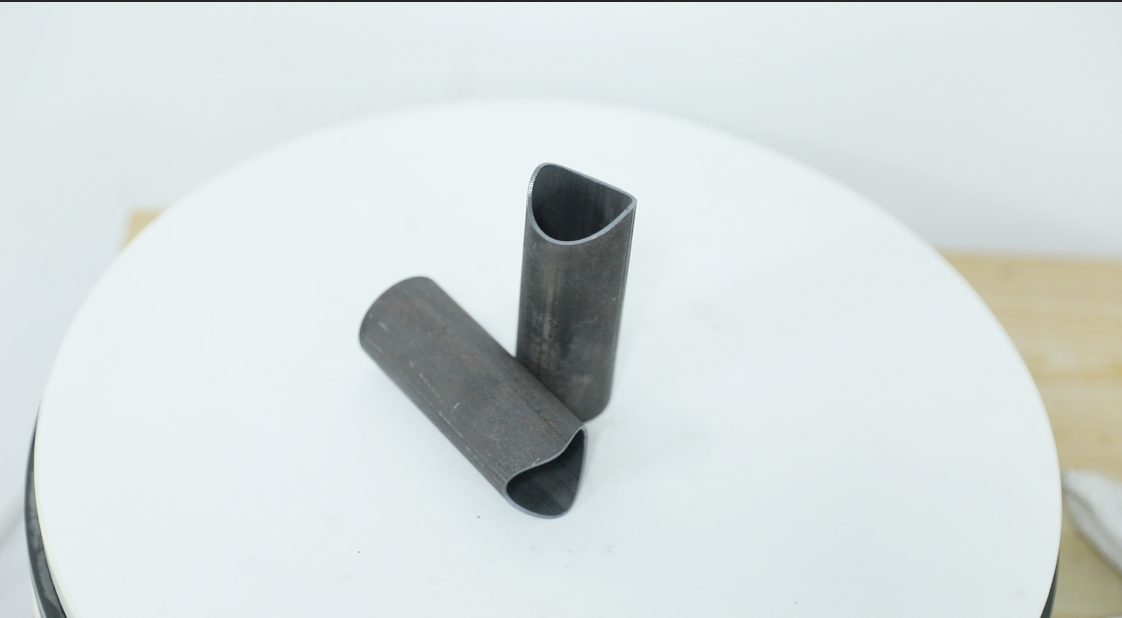

Representative shop and parts photography from our Alabama facility.
What runs on our floor.

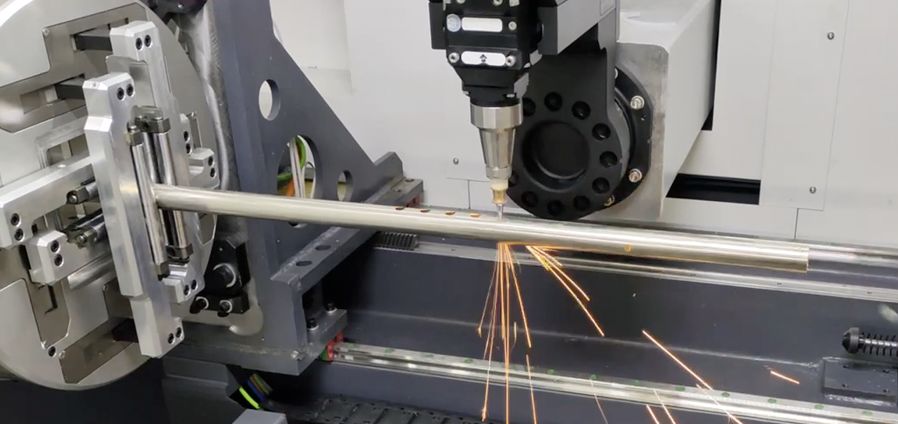

- Chuck capacity
- 1″ to 14″ OD
- Wall
- Schedule 40 / Schedule 80
- Operations
- Nozzle & penetration cutting, saddles/copes, holes, slots, weld-prep
- Materials
- Carbon steel, stainless
- Output
- Fit-and-weld ready — no torch layout
Built for the build schedule.
Nozzles, penetrations and saddles cut on the machine — on center, ready to weld.
Handles heavy Schedule 40/80 wall up to a 14″ chuck.
Laser accuracy means pipe intersections match their mating parts the first time.
More of what we run.
Questions, answered.
Yes — our chuck handles pipe up to 14″, including Schedule 80 wall.
Cutting large-diameter pipe?
Send your pipe specs — nozzles and penetrations, fit-and-weld ready.
