Tube sheets, baffles and nozzle penetrations — cut to fit, ready to weld.
Low-pressure shell-and-tube components fabricated on laser — precise hole patterns, clean nozzle cuts, and shells that fit the first time.
Heat exchangers live and die on hole-pattern accuracy. IMWX cuts tube sheets, baffles and support plates on the 12kW fiber sheet laser — hundreds of holes on exact centers, every plate identical — and cuts shells, nozzles and penetrations on the tube and large-diameter lasers. Built for the industrial OEMs and process-equipment manufacturers who need repeatable, dimensionally accurate thermal components without secondary drilling or cleanup.
What we fabricate
- Tube sheets & support plates (precise hole patterns)Sheet
- Baffles & spacersSheet
- Shell sections & cansBoth
- Nozzle & penetration cutsTube
- Headers, bonnets & end platesBoth
- Saddles, brackets & supportsBoth
Representative shop and parts photography from our Alabama facility.
What runs on our floor.
- Sheet laser
- 12kW fiber — carbon to 1", stainless to ¾", aluminum to ½"

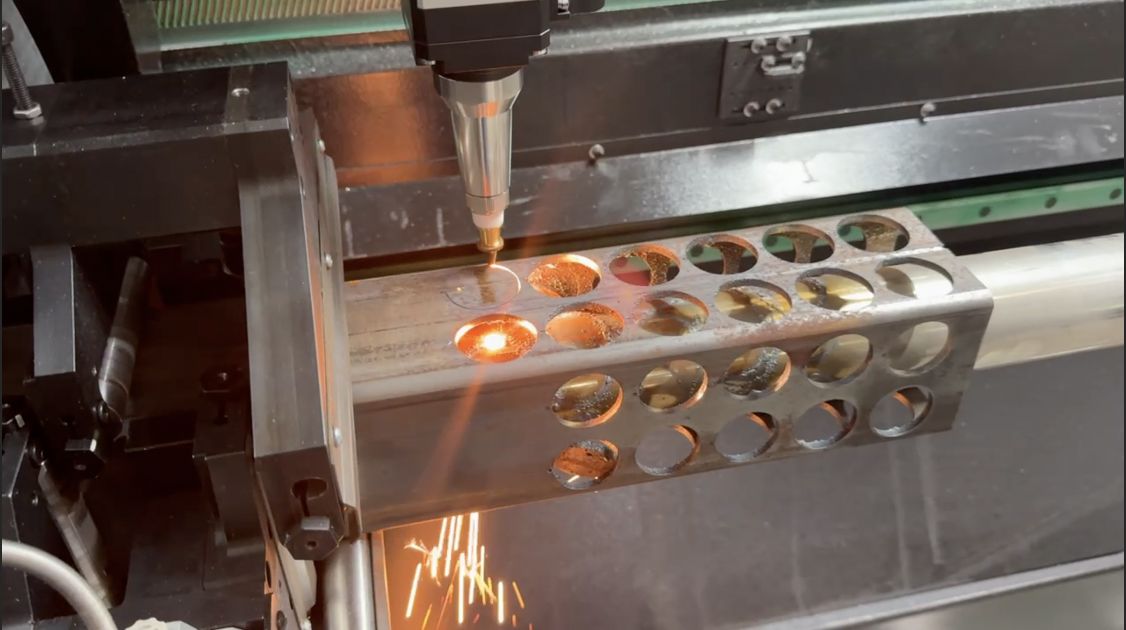

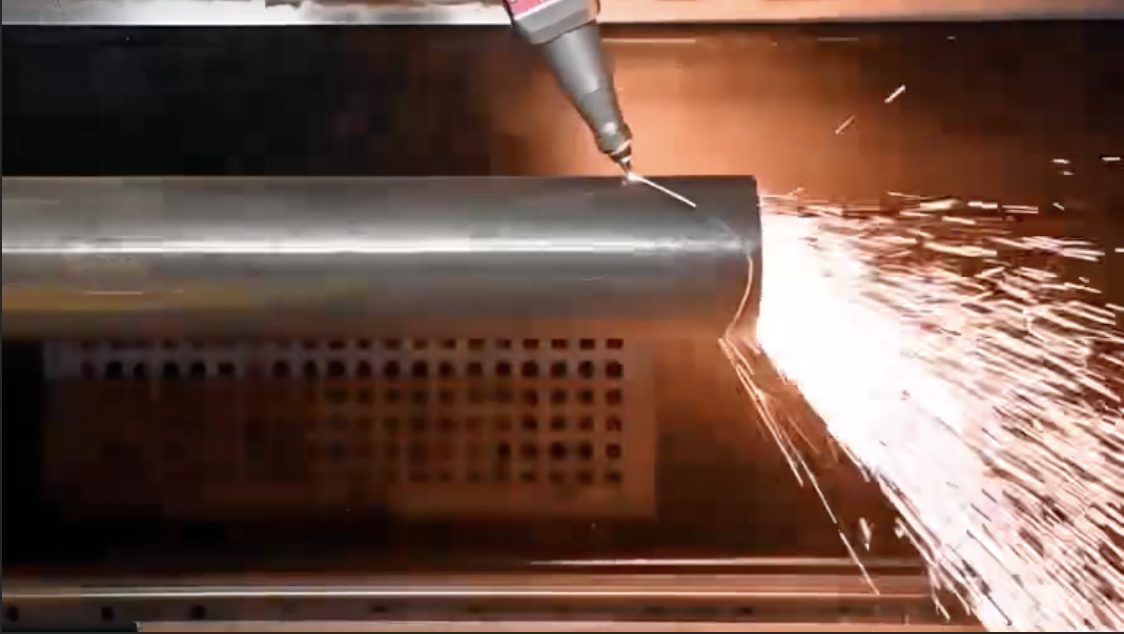

- Tube lasers
- Three high-power fiber tube laser systems — to 21 ft, to 14" chuck, 5-axis weld-prep bevel
- Welding
- MIG · TIG · 3kW robotic laser welding, AWS-compliant
- Finishing
- In-house powder coating
- Files accepted
- STEP · DXF · DWG
- Quote turnaround
- 1 business day
Built for the build schedule.
Hole-pattern precision — laser-cut tube sheets on exact centers, no drilling drift, plate-to-plate identical.
Nozzle & penetration cutting in-house — shells and ports cut on the tube / large-diameter laser.
Repeatable across runs — same dimensions from first article through production.
Questions, answered.
Yes — send STEP or DXF and we cut every hole on-center, every plate identical, no secondary drilling.
Building thermal equipment?
Send your tube-sheet and shell drawings — a real fabricator replies within one business day.
