Weld-prep bevels — cut in process.
The laser head tilts to put the bevel, chamfer or J-prep on the part as it's cut — up to 24 feet across dual machines. Joints arrive ready for full-penetration welds.
IMWX cuts weld-prep bevels directly into tube and pipe on 5-axis tube lasers — up to 24 feet, across two machines. Five-axis means the cutting head articulates: it tilts to lay a bevel, chamfer, J-prep or compound miter onto the end of a part in the same operation that cuts the profile. The joint arrives ready for a full-penetration weld with no separate beveling, grinding or setup, which removes a whole step from structural and pressure-boundary fabrication. Dual machines add throughput and redundancy, so weld-prepped members for large frames and weldments ship on schedule.
What we fabricate
- Weld-prep beveled tube endsTube
- Chamfered & J-prep jointsTube
- Compound-mitered connectionsTube
- Full-penetration structural jointsTube
- Coped & saddle-cut membersTube
- Ready-to-weld frame kitsTube

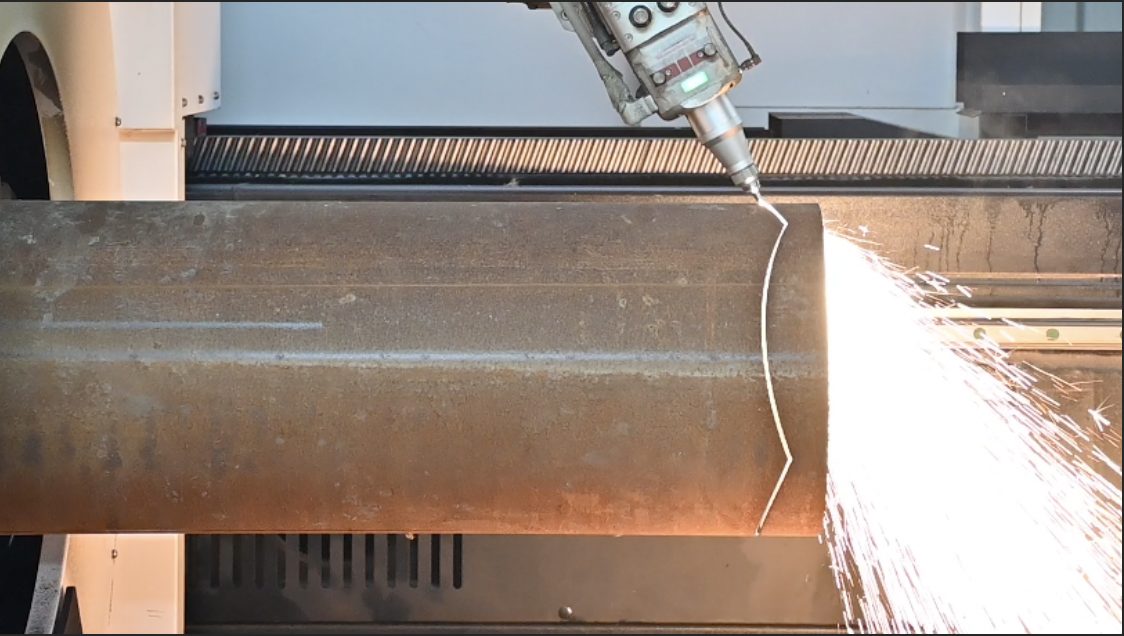

Representative shop and parts photography from our Alabama facility.
What runs on our floor.
- Machines
- Dual 5-axis tube lasers
- Max length
- 24 ft
- Capability
- In-process weld-prep bevels, chamfers, compound copes & miters
- Bevel
- Cut in the same operation as the profile
- Materials
- Carbon steel, stainless
- Benefit
- Ready-to-weld joints, no secondary beveling
Built for the build schedule.
Bevels cut in process — no separate beveling, grinding or setup step.
Articulating 5-axis head lays chamfers, J-preps and compound miters on the part.
Dual machines add throughput and redundancy so weld-prep members stay on schedule.
More of what we run.
Questions, answered.
The laser head articulates and tilts, so it can cut a bevel, chamfer or compound miter into a part in the same pass that cuts the profile.
Need weld-prep in process?
Send your joint details — bevels cut on the part, ready to weld.
